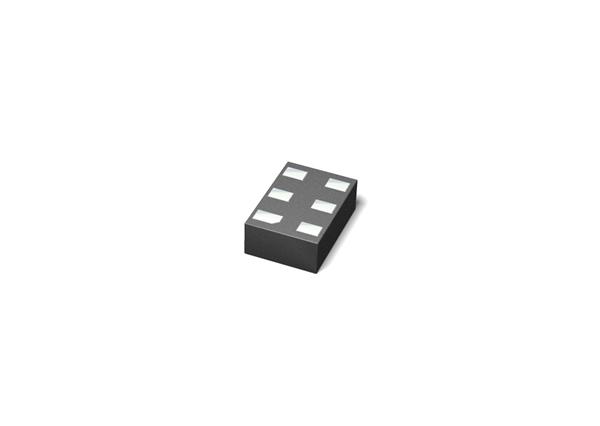

74AUP1G00GM,115

NAND gate, 0.8V to 3.6V, ±50mA, SON

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.10 / Piece
1000 ~ 10000 :	0.08 / Piece
10000 ~ 100000 :	0.06 / Piece

PartNumber:: 74AUP1G00GM,115

Brand:: NXP Semiconductors - nxp | Pack: SON | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-08

From Other Seller

Part Number:74AUP1G00GM,115
US $0.06 - 0.10
Quantity:

piece

Product Summary

The 74AUP1G00GM is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. The 74AUP1G00GM ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V. The 74AUP1G00GM is fully specified for partial Power-down applications using IOFF.

Parametrics

74AUP1G00GM absolute maximum ratings: (1) supply voltage Vcc: -0.5 to +4.6V; (2) input clamping current IIK: -50mA (VI<0V) ; (3) input voltage VI: -0.5 to +4.6V; (4) output clamping current Iok: ±50mA (VO>VCC or VO<0V) ; (5) Vo: -0.5 to Vcc +0.5V (Active mode) , -0.5 to +4.6V (Power-down mode) ; (6) output current Io: ±20mA ( VO=0V to VCC; (7) supply current Icc: +50mA; (8) Ground current IGND: -50mA; (9) storage temperature Tstg: -65 to +150°C; (10) total power dissipation Ptot: 250mW (Tamb= -40°C to +125°C) .

Features

74AUP1G00GM features: (1) Wide supply voltage range from 0.8 V to 3.6V; (2) High noise immunity; (3) Low static power consumption; ICC=0.9 µA (maximum) ; (4) Latch-up performance exceeds 100 mA per JESD 78 Class II; (5) Inputs accept voltages up to 3.6V; (6) Low noise overshoot and undershoot < 10 % of VCC; (7) IOFF circuitry provides partial Power-down mode operation; (8) Multiple package options; (9) Specified from -40°Cto+85 °C and -40°C to +125°C.
