Product Summary

The Microchip Technology Inc. 24AA02/24LC02B
(24XX02*) is a 2 Kbit Electrically Erasable PROM. The
device is organized as one block of 256 x 8-bit memory
with a 2-wire serial interface. Low-voltage design
permits operation down to 1.7V, with standby and
active currents of only 1μA and 1 mA, respectively.
The 24XX02 also has a page write capability for up to
8 bytes of data. The 24XX02 is available in the
standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3
DFN, 2x3 TDFN and MSOP packages and is also available in the 5-lead SOT-23 and SC-70 packages

Features

? Single Supply with Operation down to 1.7V for
24AA02 Devices, 2.5V for 24LC02B Devices
? Low-Power CMOS Technology:
- Read current 1 mA, max.
- Standby current 1μA, max. (I-temp)
? 2-Wire Serial Interface, I
2
C? Compatible
? Schmitt Trigger inputs for Noise Suppression
? Output Slope Control to eliminate Ground Bounce
? 100 kHz and 400 kHz Clock Compatibility
? Page Write Time 3 ms, typical
? Self-Timed Erase/Write Cycle
? 8-Byte Page Write Buffer
? Hardware Write-Protect
? ESD Protection >4,000V
? More than 1 Million Erase/Write Cycles
? Data Retention >200 Years
? Factory Programming Available
? Packages include 8-lead PDIP, SOIC, TSSOP,
DFN, TDFN, MSOP, 5-lead SOT-23 and SC-70
? Pb-free and RoHS Compliant

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

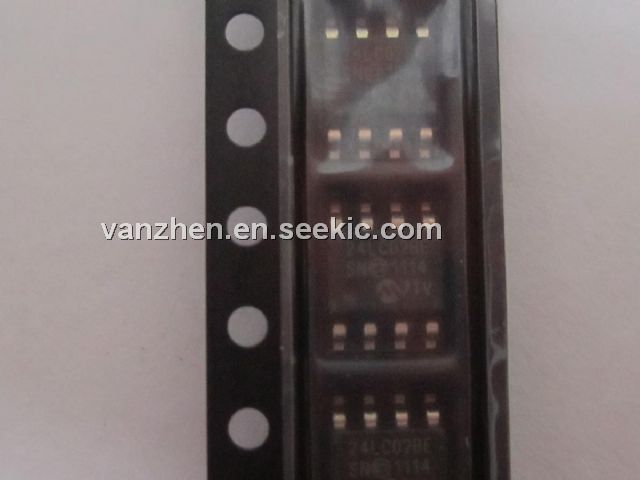

24LC02B-E/SN
24LC02B-E/SN

Microchip Technology

EEPROM 256x8 - 1.8V

Data Sheet

0-1: $0.21
1-10: $0.17
10-25: $0.16
25-100: $0.16
24LC02B-E/SNG
24LC02B-E/SNG

Microchip Technology

EEPROM 256x8 - 1.8V Lead Free Package

Data Sheet

Negotiable
