Product Summary

The 2302 is a COMMON BASE transistor capable of providing 2 Watts Class C, RF output power at 2300 MHz. Gold metalization and diffused ballasting are used to provide high reliability and supreme ruggedness. The transistor uses a fully hermetic High Temperature Solder Sealed package.

Parametrics

2302 absolute maximum ratings: (1)Maximum Power Dissipation @ 25oC: 7.0 Watts; (2)BVces Collector to Emitter Voltage: 45 Volts; (3)BVebo Emitter to Base Voltage: 3.5 Volts; (4)Ic Collector Current: 0.5 Amps; (5)Storage Temperature: - 65 to + 200 ℃; (6)Operating Junction Temperature: + 200 ℃.

Diagrams

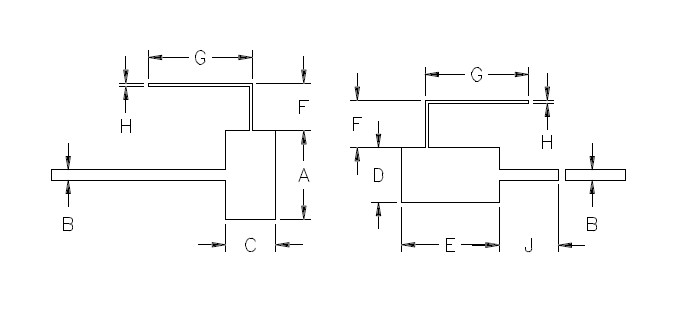

2302 pin connection
