Product Summary
The 118F is a miniature high power relay.
Parametrics
118F absolute maximum ratings: (1)max. switching voltage: 440VAC/125VDC; (2)max. switching current: 10A; (3)max. switching power: 2500VAC/300W; (4)contact arrangement: 1A, 1B, 1C; (5)Ambient temperature: -40 to 85℃.
Features
118F features: (1)10A switching capability; (2)5kV dielectric strength (between coil and contacts); (3)Low height: 12.5mm; (4)Creepage distance>10mm; (5)Product in accordance to IEC 60335-1 available; (6)1 pole configurations available; (7)Sockets available; (8)Wash tight and flux proofed types available; (9)Environmental friendly product; (10)Outline Dimensions: (29.0 x 12.7 x 15.7) mm.

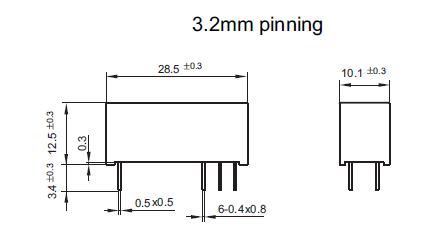

Diagrams
