Product Summary

The XFN21N100Q is a Power MOSFET. The applications of the XFN21N100Q include DC-DC converters Battery chargers, Switched-mode and resonant-mode power supplies, DC choppers, Temperature and lighting controls.

Parametrics

XFN21N100Q absolute maximum ratings: (1)VDSS: 100 V; (2)VDGR: 100 V; (3)VGS: ±20 V; (4)VGSM: ±30 V; (5)ID25: 230 A; (6)IL(RMS): 100 A; (7)IDM: 920 A; (8)IAR: 150 A; (9)EAR: 64 mJ; (10)EAS: 4 J; (11)dv/dt: 5 V/ns; (12)PD: 700 W; (13)TJ: -55 to +150 ℃; (14)TJM: 150 ℃; (15)Tstg: -55 to +150 ℃; (16)VISOL: 2500 V; (17)IISOL: 3000 V; (18)Md: 1.5/13 Nm/lb.in; (19)Weight: 30 g.

Features

XFN21N100Q features: (1)International standard packages; (2)miniBLOC, with Aluminium nitride isolation; (3)Low RDS (on) HDMOSTM process; (4)Rugged polysilicon gate cell structure; (5)Unclamped Inductive Switching (UIS) rated; (6)Low package inductance; (7)Fast intrinsic Rectifier.

Diagrams

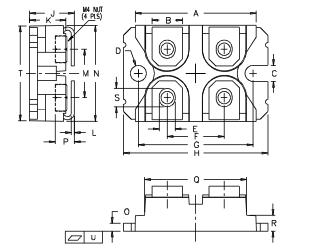

XFN21N100Q block diagram
