AO4914

AO4914, dual N-channel enhancement mode field effect transistor, 30 V, 30 A, 2 W, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AO4914

Brand:: Alpha & Omega Semiconductors - AOS | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:AO4914
US $0.30 - 0.50
Quantity:

piece

Product Summary

The AO4714 is a dual N-channel enhancement mode field effect transistor with schottky diode. The AO4914 uses advanced trench technology to provide excellent R DS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters. The AO4914 is co-packaged in parallel with the synchronous MOSFET to boost efficiency further AO4914 is Pb-free.

Parametrics

AO4914 absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: ±20 V; (3)Continuous drain current TA=25°C: 8.5 A; TA=70°C: 6.6 A; (4)Pulsed drain current: 30 A; (5)Power dissipation TA=25°C: 2 W; TA=70°C: 1.28 W; (6)Junction and storage temperature range: -55 to 150 °C.

Features

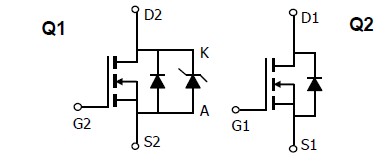

AO4914 features: (1)Q1: VDS (V)= 30V; ID = 8.5A; RDS(ON)< 18mΩ; RDS(ON)< 28mΩ; (2)Q2: VDS(V)= 30V; ID = 8.5A; <18mΩ (VGS = 10V); <28mΩ (VGS = 4.5V); (3)Schottky: VDS (V)= 30V, IF = 3A, VF<0.5V@1A.
