Product Summary
The XC-ST30/30CE is a compact, lightweight, black-and-white camera module of a new concept, which is produced as input devices for image processing by using the latest technology. The XC-ST30/30CE inherit the basic functions of the XC-75 (installing a 1/2-inch CCD) and the XC-73 (installing a 1/3-inch CCD), which are used in various types of devices and systems and win popularity in the machine vision field. The XC-ST30/30CE provides an external trigger shutter that can catch a high-speed moving subject using an external signal. In addition, the XC-ST30/30CE enable functions to be set on the rear panel for improved operability and have an internal configuration which implements significant shock and vibration resistance, allowing easy incorporation into machine vision equipment.
Features
XC-ST30/30CE features: (1)Inputting HD and VD signals (2 VD or more)continuously from the outside can catch one image at arbitrary time; (2)and control the exposure time of CCD; (3)This function is used for long exposures and strobe with frame image output; (4)Inputting an HD/VD signal from the outside automatically establishes external synchronization; (5)This function is effective for controlling multiple cameras efficiently from the external system; (6)The setting of each mode can be changed by selecting DIP and rotary switch; (7)Almost all switches are located on the rear panel. This feature permits easy setting after equipment is installed.

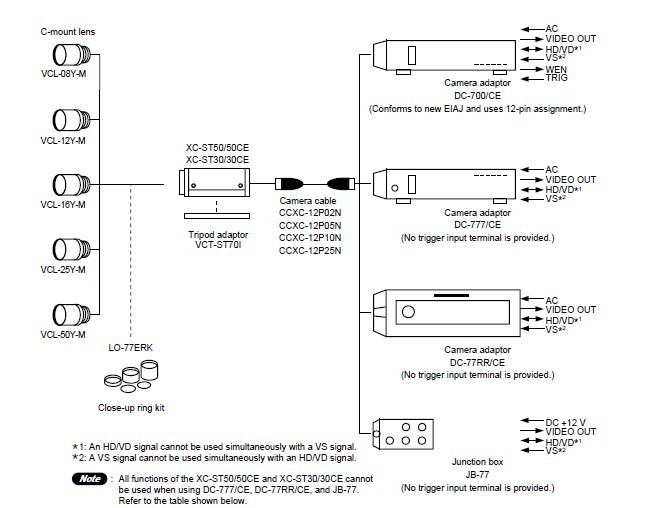

Diagrams
